SN74LVC1G123YZPR
Manufacturer:
Texas Instruments
Mfr.Part #:
SN74LVC1G123YZPR
Datasheet:
Description:

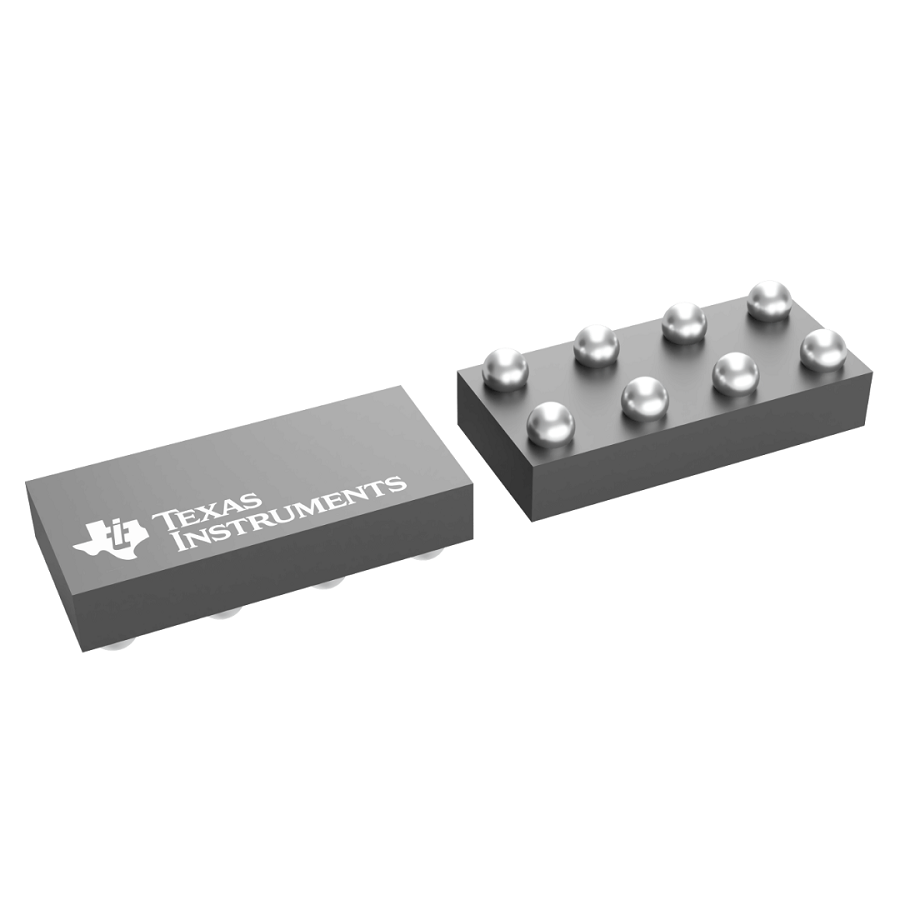

Logic ICs DSBGA-8 SMD/SMT Multivibrator
| Parameter | Value |
|---|---|
| Length | 1.25 mm |
| Width | 2.25 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Height | 500 µm |
| Packaging | Reel |
| Thickness | 310 µm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Copper, Silver, Tin |
| Number of Elements | 1 |
| Operating Supply Voltage | 5 V |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 1.65 V |
| Number of Bits | 1 |
| Turn-On Delay Time | 59 ns |
| Quiescent Current | 20 µA |
| Propagation Delay | 18.5 ns |
| High Level Output Current | -32 mA |
| Low Level Output Current | 32 mA |
| Logic Function | Multivibrator |
| Independent Circuits | 1 |
| Schmitt Trigger Input | Yes |
Stock: 1758
Distributors
pcbx
pcbxUnit Price$0.93871
Ext.Price$0.93871
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.93871 | $0.93871 |
| 10 | $0.68223 | $6.82230 |
| 25 | $0.62153 | $15.53825 |
| 50 | $0.58589 | $29.29450 |
| 100 | $0.55229 | $55.22900 |
| 300 | $0.52467 | $157.40100 |
| 500 | $0.49843 | $249.21500 |
| 1000 | $0.48133 | $481.33000 |
| 3000 | $0.46337 | $1390.11000 |
| 5000 | $0.44286 | $2214.30000 |
